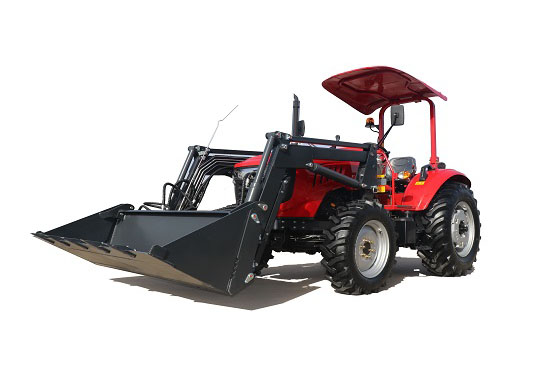

Designed for the most versatile applications, the FOTRAK 504 tractor is ready for any job that demands a durable tractor. An efficient 4-cylinder diesel engine with direct injection and the comfortable operation ensures maximum reliability and performance in all working situations.
01

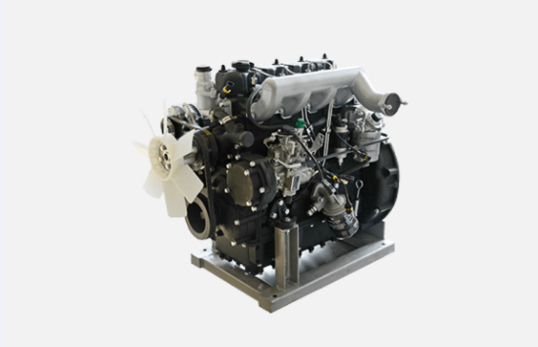

50 horse power 4 cylinder diesel engine, 3.2 liters displacement and Direct injection system, max 185 N.m torque and with 30% torque backup.
02

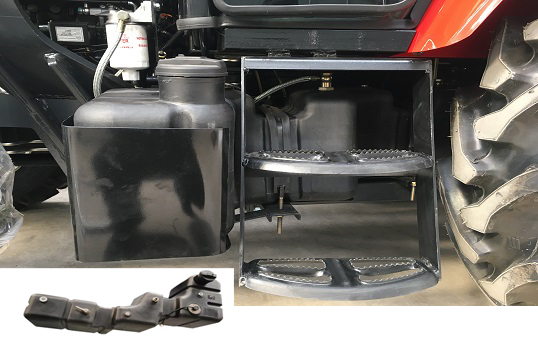

The easy-to-fill 65L fuel tank ensures long time running.
03

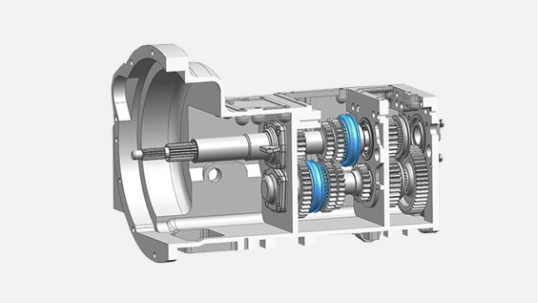

A Standard 12F+12R synchronise gears trasmission Maximize productivity by offering more speeds.
04
A standard mechnical shuttle lever located left side of dashborad,to control the tractor smoothly with front end loader.
05

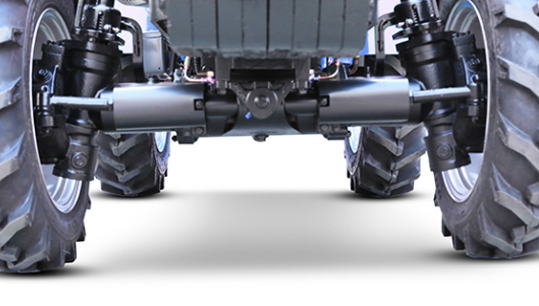

Standard 4WD with a heavy duty portal front axle optimizes traction force and front axle ground clearance.
06

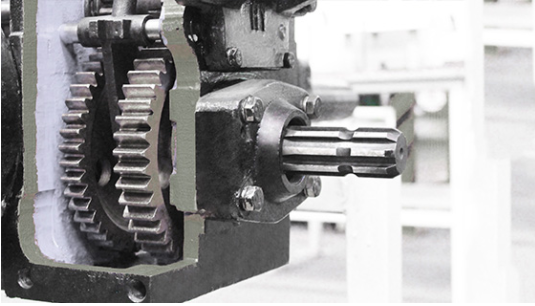

Independent PTO offering 540/1000 dual speeds combination perfectly meets your different working requirements.
07

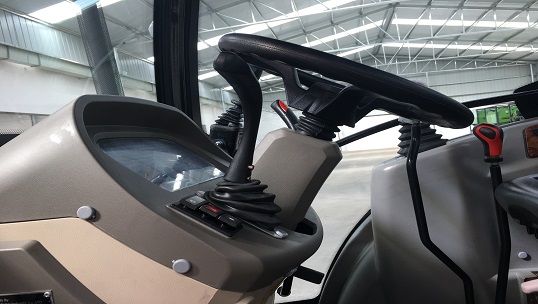

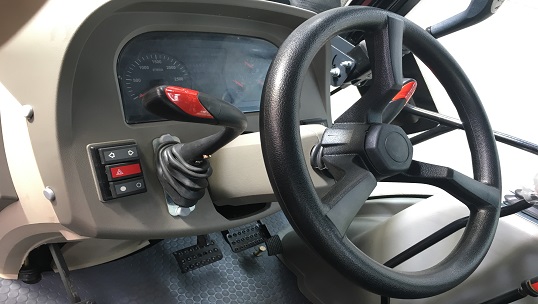

Adjustable steering wheel.
08

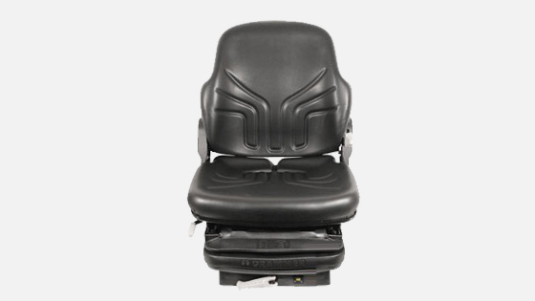

Grammer suspension seat.
09

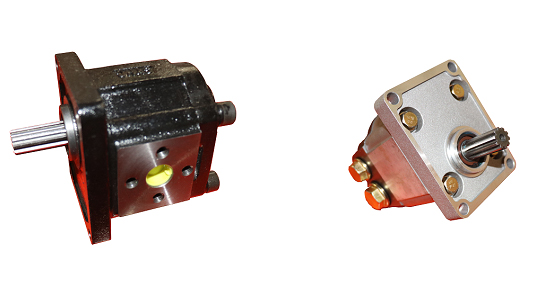

Open center hydraulic independent steering and working system
10

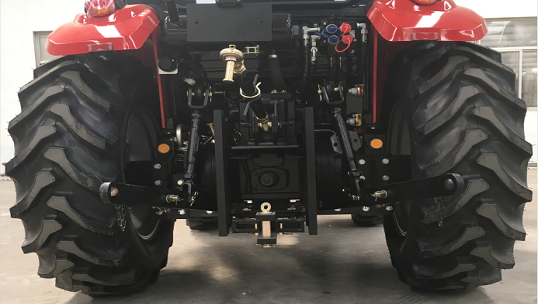

A category II linkage with 900kg lift capacity a standard draft control and position control fuction.
11

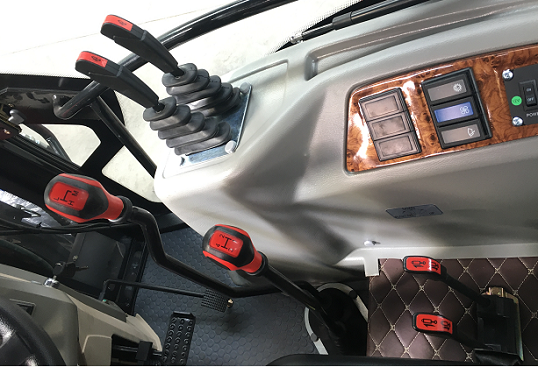

An easy-to-operate platform, gear and range shift levers locate at right side.
12

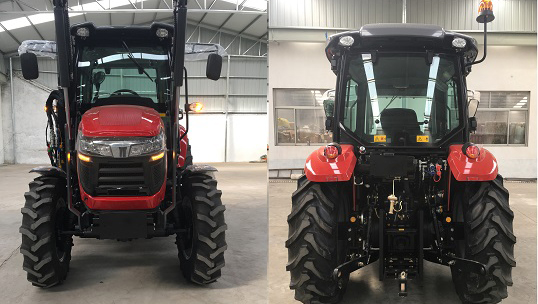

Standard two-post foldable rollover protective structure (ROPS) increases operator safety.
13

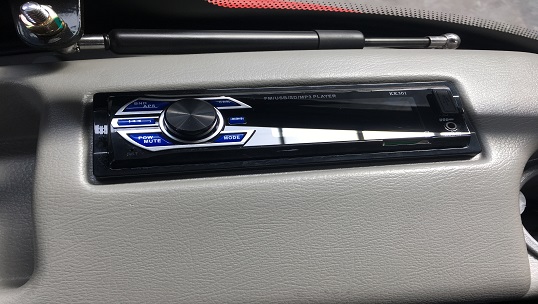

Radio as standard for Cabin version version.
14
Lighting system. Better lighting and visibility(2 head lights, 2 working lights, 2 tail lights, 4-way flashers and turn signals)
15

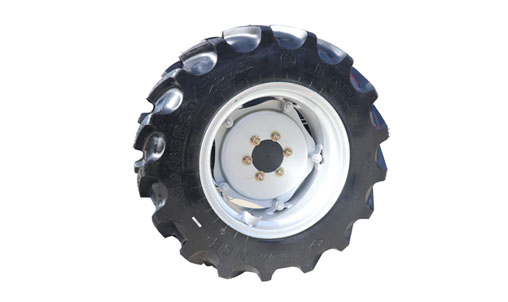

Radial or bias agricultural tires and turf tires are for your option.
16

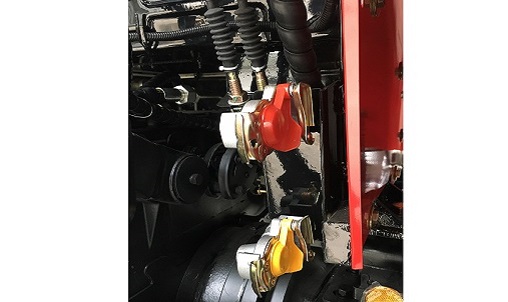

Optional compressed air for tralier brake system.
17

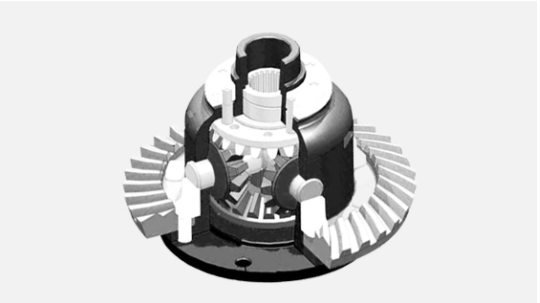

Standard differential lock
18

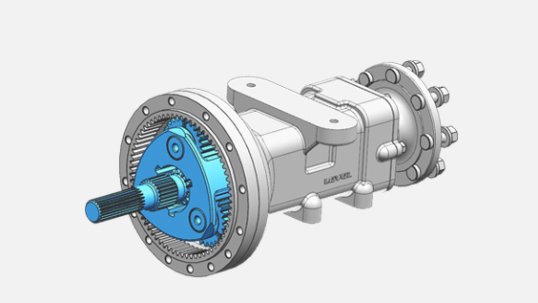

Planetary final drives.
19

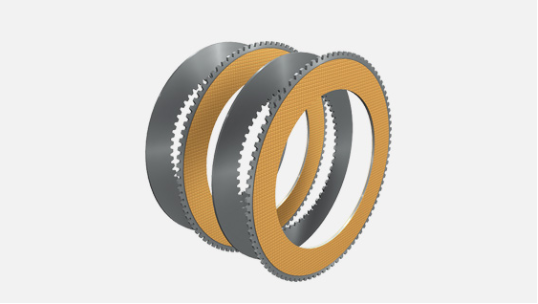

Wet type multi-disc brake.
20

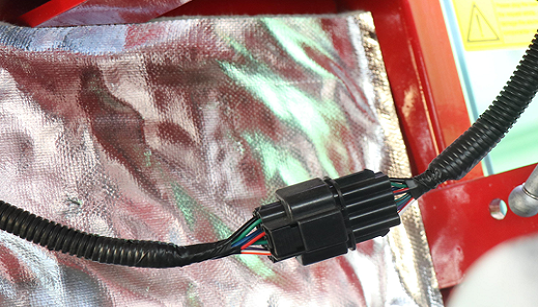

Use waterproof connector
